有毒的学Pin记录 -- 2

1

typedef COMPLEX_CALLBACKVAL_BASE * 	PIN_CALLBACK

1

VOID INS_RewriteMemoryOperand(INS ins, UINt32 memindex, REG newBase)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

// 映射originalEa到一个翻译后的地址
static ADDRINT ProcessAddress(ADDRINT originalEa, ADDRINT size, UINT32 access);
...
   for (UINT32 op = 0; op<INS_MemoryOperandCount(ins); op++) // 首先遍历内存操作指令进行计数
   {
       UINT32 access = (INS_MemoryOperandIsRead(ins,op)    ? 1 : 0) |  // 判断是内存读还是内存写
                       (INS_MemoryOperandIsWritten(ins,op) ? 2 : 0);
       INS_InsertCall(ins, IPOINT_BEFORE,
                      AFUNPTR(ProcessAddress),
                      IARG_MEMORYOP_EA,   op,
                      IARG_MEMORYOP_SIZE, op,
                      IARG_UINT32,        access,
                      IARG_RETURN_REGS,   REG_INST_G0+i,
                      IARG_END);  // 在指令处进行插桩
       INS_RewriteMemoryOperand(ins, i, REG(REG_INST_G0+i));  // 重写内存指令的操作数
   }

1

pin [pin-option]... -t [toolname] [tool-options]... -- [application] [application-option]..

1
2

pin [pin-option]... -t64 <64-bit toolname> -t <32-bit toolname> [tool-options]...
-- <application> [application-option]..

1
2
3

LOG( "Replacing function in " + IMG_Name(img) + "\n" );
LOG( "Address = " + hexstr( RTN_Address(rtn)) + "\n" );
LOG( "Image ID = " + decstr( IMG_Id(img) ) + "\n" );

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

VOID Instruction(INS ins, void *v)
{
      ...
      if ( [ins is a branch or a call instruction] )
      {
        INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR) docount2,
                       IARG_INST_PTR,
                       IARG_BRANCH_TARGET_ADDR,
                       IARG_BRANCH_TAKEN,
                       IARG_END);
      }
      ...
}

1
2
3
4
5
6

VOID docount2( ADDRINT src, ADDRINT dst, INT32 taken )
{
    if(!taken) return;
    COUNTER *pedg = Lookup( src,dst );
    pedg->_count++;
}

1
2
3
4
5

VOID docount( COUNTER *pedg, INT32 taken )
{
    if( !taken ) return;
    pedg->_count++;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

VOID Instruction(INS ins, void *v)
{
      ...
    if (INS_IsDirectControlFlow(ins))
    {
        COUNTER *pedg = Lookup( INS_Address(ins),  INS_DirectControlFlowTargetAddress(ins) );
        INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR) docount,
                       IARG_ADDRINT, pedg,
                       IARG_BRANCH_TAKEN,
                       IARG_END);
    }
    else
    {
        INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR) docount2,
                       IARG_INST_PTR,
                       IARG_BRANCH_TARGET_ADDR,
                       IARG_BRANCH_TAKEN,
                       IARG_END);
    }
      ...
}

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260

/*! @file
 *  This file contains an ISA-portable PIN tool for tracing instructions
 */
#include <iostream>
#include <fstream>
#include <map>
#include <unistd.h>
#include "pin.H"
using std::cerr;
using std::endl;
using std::map;
using std::pair;
using std::string;

/* ===================================================================== */
/* Commandline Switches */
/* ===================================================================== */

KNOB< string > KnobOutputFile(KNOB_MODE_WRITEONCE, "pintool", "o", "edgcnt.out", "specify trace file name");
KNOB< INT32 > KnobFilterByHighNibble(KNOB_MODE_WRITEONCE, "pintool", "f", "-1",
                                     "only instrument instructions with a code address matching the filter");
KNOB< BOOL > KnobPid(KNOB_MODE_WRITEONCE, "pintool", "i", "0", "append pid to output");

/* ===================================================================== */
/* Print Help Message                                                    */
/* ===================================================================== */

static INT32 Usage()
{
    cerr << "This pin tool collects an edge profile for an application\n";
    cerr << "The edge profile is partial as it only considers control flow changes (taken\n";
    cerr << "branch edges, etc.). It is the left to the profile consumer to compute the missing counts.\n";
    cerr << "\n";

    cerr << "The pin tool *does* keep track of edges from indirect jumps within, out of, and into\n";
    cerr << "the application. Traps to the OS a recorded with a target of -1.\n";

    cerr << KNOB_BASE::StringKnobSummary() << endl;
    return -1;
}

/* ===================================================================== */
/* Global Variables */
/* ===================================================================== */

class COUNTER
{
  public:
    UINT64 _count; // 边界到达的次数，计数器

    COUNTER() : _count(0) {}
};

typedef enum
{
    ETYPE_INVALID,
    ETYPE_CALL,
    ETYPE_ICALL,
    ETYPE_BRANCH,
    ETYPE_IBRANCH,
    ETYPE_RETURN,
    ETYPE_SYSCALL,
    ETYPE_LAST
} ETYPE;

class EDGE
{
  public:
    ADDRINT _src;
    ADDRINT _dst;
    ADDRINT _next_ins;
    ETYPE _type; // 必须为整数形式

    EDGE(ADDRINT s, ADDRINT d, ADDRINT n, ETYPE t) : _src(s), _dst(d), _next_ins(n), _type(t) {}

    bool operator<(const EDGE& edge) const { return _src < edge._src || (_src == edge._src && _dst < edge._dst); }
};

string StringFromEtype(ETYPE etype)
{
    switch (etype)
    {
        case ETYPE_CALL:
            return "C";
        case ETYPE_ICALL:
            return "c";
        case ETYPE_BRANCH:
            return "B";
        case ETYPE_IBRANCH:
            return "b";
        case ETYPE_RETURN:
            return "r";
        case ETYPE_SYSCALL:
            return "s";
        default:
            ASSERTX(0);
            return "INVALID";
    }
}

typedef map< EDGE, COUNTER* > EDG_HASH_SET;

static EDG_HASH_SET EdgeSet;

/* ===================================================================== */

/*!
  对于已经进行过插桩的Edge，重用entry；否则创建一个新的。
 */

static COUNTER* Lookup(EDGE edge) // 查找边界
{
    COUNTER*& ref = EdgeSet[edge];

    if (ref == 0)
    {
        ref = new COUNTER();
    }

    return ref;
}

/* ===================================================================== */
// 分析routine代码

VOID docount(COUNTER* pedg) { pedg->_count++; }

/* ===================================================================== */
// 对于间接控制流，我们不知道边界，所以需要进行查找。

VOID docount2(ADDRINT src, ADDRINT dst, ADDRINT n, ETYPE type, INT32 taken)
{
    if (!taken) return;
    COUNTER* pedg = Lookup(EDGE(src, dst, n, type));
    pedg->_count++;
}

/* ===================================================================== */

VOID Instruction(INS ins, void* v) // 插桩函数
{
    if (INS_IsDirectControlFlow(ins)) // 如果是直接控制流（ins为控制流指令，目标地址由指令指针或立即数指定）
    {
        ETYPE type = INS_IsCall(ins) ? ETYPE_CALL : ETYPE_BRANCH; // 判断是否为call指令，是则返回ETYPE_CALL

        // 静态目标可以在这里进行一次映射
      	// 参数分别为当前指令地址、当前指令目标地址、下一指令地址、指令类型
        COUNTER* pedg = Lookup(EDGE(INS_Address(ins), INS_DirectControlFlowTargetAddress(ins), INS_NextAddress(ins), type));
      	// 插桩
        INS_InsertCall(ins, IPOINT_TAKEN_BRANCH, (AFUNPTR)docount, IARG_ADDRINT, pedg, IARG_END);
    }
    else if (INS_IsIndirectControlFlow(ins)) // 如果是间接控制流（ins为控制流指令，且目标地址通过内存或寄存器提供）
    {
        ETYPE type = ETYPE_IBRANCH; // 直接指定类型为间接控制流

        if (INS_IsRet(ins)) // 是否为ret或iret
        {
            type = ETYPE_RETURN;
        }
        else if (INS_IsCall(ins))
        {
            type = ETYPE_ICALL;
        }
				// 进行插桩
        INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR)docount2, IARG_INST_PTR, IARG_BRANCH_TARGET_ADDR, IARG_ADDRINT, INS_NextAddress(ins), IARG_UINT32, type, IARG_BRANCH_TAKEN, IARG_END);
    }
    else if (INS_IsSyscall(ins))  //  如果是syscall指令
    {
        COUNTER* pedg = Lookup(EDGE(INS_Address(ins), ADDRINT(~0), INS_NextAddress(ins), ETYPE_SYSCALL));
        INS_InsertPredicatedCall(ins, IPOINT_BEFORE, (AFUNPTR)docount, IARG_ADDRINT, pedg, IARG_END);
    }
}

/* ===================================================================== */

inline INT32 AddressHighNibble(ADDRINT addr) { return 0xf & (addr >> (sizeof(ADDRINT) * 8 - 4)); }

/* ===================================================================== */
static std::ofstream* out = 0;

VOID Fini(int n, void* v) // 程序结束时的处理函数
{
    const INT32 nibble = KnobFilterByHighNibble.Value();

    *out << "EDGCOUNT        4.0         0\n"; // profile header, no md5sum
    UINT32 count = 0;

    for (EDG_HASH_SET::const_iterator it = EdgeSet.begin(); it != EdgeSet.end(); it++)
    {
        const pair< EDGE, COUNTER* > tuple = *it;
        // skip inter shared lib edges

        if (nibble >= 0 && nibble != AddressHighNibble(tuple.first._dst) && nibble != AddressHighNibble(tuple.first._src))
        {
            continue;
        }

        if (tuple.second->_count == 0) continue;

        count++;
    }

    *out << "EDGs " << count << endl;
    *out << "# src          dst        type    count     next-ins\n";
    *out << "DATA:START" << endl;

    for (EDG_HASH_SET::const_iterator it = EdgeSet.begin(); it != EdgeSet.end(); it++)
    {
        const pair< EDGE, COUNTER* > tuple = *it;

        // skip inter shared lib edges

        if (nibble >= 0 && nibble != AddressHighNibble(tuple.first._dst) && nibble != AddressHighNibble(tuple.first._src))
        {
            continue;
        }

        if (tuple.second->_count == 0) continue;

        *out << StringFromAddrint(tuple.first._src) << " " << StringFromAddrint(tuple.first._dst) << " "
             << StringFromEtype(tuple.first._type) << " " << decstr(tuple.second->_count, 12) << " "
             << StringFromAddrint(tuple.first._next_ins) << endl;
    }

    *out << "DATA:END" << endl;
    *out << "## eof\n";
    out->close();
}

/* ===================================================================== */
/* Main                                                                  */
/* ===================================================================== */

int main(int argc, char* argv[])
{
    if (PIN_Init(argc, argv)) // 初始化
    {
        return Usage();
    }

    string filename = KnobOutputFile.Value(); // 输出文件
    if (KnobPid)
    {
        filename += "." + decstr(getpid());
    }
    out = new std::ofstream(filename.c_str());

    INS_AddInstrumentFunction(Instruction, 0); // 注册插桩函数
    PIN_AddFiniFunction(Fini, 0); // 注册Fini函数

    // 开始执行，不返回

    PIN_StartProgram();

    return 0;
}

/* ===================================================================== */
/* eof */
/* ===================================================================== */

1
2
3
4

VOID docount( COUNTER *pedg, INT32 taken )
{
    pedg->_count += taken;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

#include <iostream>
#include <fstream>
#include "pin.H"
using std::cerr;
using std::endl;
using std::ios;
using std::ofstream;
using std::string;

ofstream OutFile;

// 记录运行的指令的数量，设置为静态变量方便编译器优化docount函数
static UINT64 icount = 0;

// 在每个块之前调用该函数
// 对calls使用fast linkage
VOID PIN_FAST_ANALYSIS_CALL docount(ADDRINT c) { icount += c; }

// Pin在遇到一个新块时调用，插入对docount 函数的调用
VOID Trace(TRACE trace, VOID* v)
{
    // 检查trace中的每个基本块
    for (BBL bbl = TRACE_BblHead(trace); BBL_Valid(bbl); bbl = BBL_Next(bbl))
    {

      	// 对每个bbl插入对docount函数的调用，将指令数量作为参数传递
      	// IPOINT_ANYWHERE参数允许Pin在bbl内部任意位置插入call以获取最好的性能
      	// 对call使用fast linkage
        BBL_InsertCall(bbl, IPOINT_ANYWHERE, AFUNPTR(docount), IARG_FAST_ANALYSIS_CALL, IARG_UINT32, BBL_NumIns(bbl), IARG_END);
    }
}

KNOB< string > KnobOutputFile(KNOB_MODE_WRITEONCE, "pintool", "o", "inscount.out", "specify output file name");

// 程序退出时调用
VOID Fini(INT32 code, VOID* v)
{
    OutFile.setf(ios::showbase);
    OutFile << "Count " << icount << endl;
    OutFile.close();
}

/* ===================================================================== */
/* Print Help Message                                                    */
/* ===================================================================== */

INT32 Usage()
{
    cerr << "This tool counts the number of dynamic instructions executed" << endl;
    cerr << endl << KNOB_BASE::StringKnobSummary() << endl;
    return -1;
}

/* ===================================================================== */
/* Main                                                                  */
/* ===================================================================== */

int main(int argc, char* argv[])
{
    // 初始化Pin
    if (PIN_Init(argc, argv)) return Usage();

    OutFile.open(KnobOutputFile.Value().c_str());

    // 注册插桩函数Trace
    TRACE_AddInstrumentFunction(Trace, 0);

    // 注册Fini函数
    PIN_AddFiniFunction(Fini, 0);

    // 开始执行，不返回
    PIN_StartProgram();

    return 0;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

... ...
// 对分析函数使用fast linkage
VOID PIN_FAST_ANALYSIS_CALL docount(ADDRINT c) { icount += c; }

VOID Trace(TRACE trace, VOID* v)
{
    // 检查trace中的每个基本块
    for (BBL bbl = TRACE_BblHead(trace); BBL_Valid(bbl); bbl = BBL_Next(bbl))
    {

      	// 对插桩函数使用fast linkage
        BBL_InsertCall(bbl, IPOINT_ANYWHERE, AFUNPTR(docount), IARG_FAST_ANALYSIS_CALL, IARG_UINT32, BBL_NumIns(bbl), IARG_END);
    }
}
... ...

1

make OPT=-O0

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

// IP-sampling分析routine实现:

VOID IpSample(VOID *ip)
{
  	--icount;
  	if (icount == 0)
  	{
    		fprintf(trace, "%p\n", ip);
    		icount = N + rand() % M;
  	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

/*
 *  IP-sampling分析routine实现:
 *
 *        VOID IpSample(VOID *ip)
 *        {
 *            --icount;
 *            if (icount == 0)
 *            {
 *               fprintf(trace, "%p\n", ip);
 *               icount = N + rand() % M;
 *            }
 *        }
 */
// 计算icount
ADDRINT CountDown()
{
    --icount;
    return (icount == 0);
}
// 打印当前指令的IP并且icount被重置为N和N+M中的一个随机数
VOID PrintIp(VOID* ip)
{
    fprintf(trace, "%p\n", ip);
    // 准备下次计算
    icount = N + rand() % M;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

/* source/tools/ManualExamples/isampling.cpp */
#include <stdio.h>
#include <stdlib.h>
#include "pin.H"
FILE* trace;
const INT32 N = 100000;
const INT32 M = 50000;
INT32 icount = N;
/*
 *  IP-sampling分析routine实现:
 *
 *        VOID IpSample(VOID *ip)
 *        {
 *            --icount;
 *            if (icount == 0)
 *            {
 *               fprintf(trace, "%p\n", ip);
 *               icount = N + rand() % M;
 *            }
 *        }
 */
// 计算icount
ADDRINT CountDown()
{
    --icount;
    return (icount == 0);
}
// 打印当前指令的IP并且icount被重置为N和N+M中的一个随机数
VOID PrintIp(VOID* ip)
{
    fprintf(trace, "%p\n", ip);
    // 准备下次计算
    icount = N + rand() % M;
}

VOID Instruction(INS ins, VOID* v)
{
    // 每条指令执行后都会调用CountDown()
    INS_InsertIfCall(ins, IPOINT_BEFORE, (AFUNPTR)CountDown, IARG_END);
    // 只有当CountDown返回非0值时才会调用PrintIp()
    INS_InsertThenCall(ins, IPOINT_BEFORE, (AFUNPTR)PrintIp, IARG_INST_PTR, IARG_END);
}

VOID Fini(INT32 code, VOID* v)
{
    fprintf(trace, "#eof\n");
    fclose(trace);
}
/* ===================================================================== */
/* Print Help Message                                                    */
/* ===================================================================== */
INT32 Usage()
{
    PIN_ERROR("This Pintool samples the IPs of instruction executed\n" + KNOB_BASE::StringKnobSummary() + "\n");
    return -1;
}
/* ===================================================================== */
/* Main                                                                  */
/* ===================================================================== */
int main(int argc, char* argv[])
{
    trace = fopen("isampling.out", "w");
    if (PIN_Init(argc, argv)) return Usage();
    INS_AddInstrumentFunction(Instruction, 0);
    PIN_StartProgram();
    return 0;
}

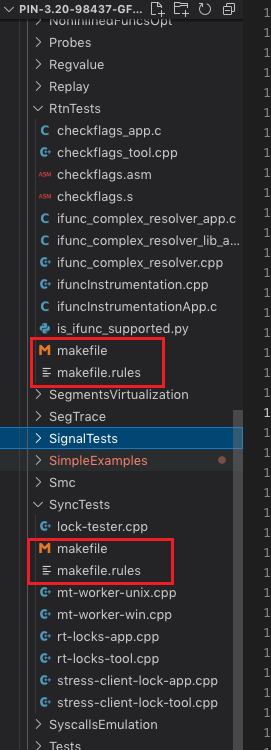

1

make obj-intel64/YourTool.so

1

make PIN_ROOT=<path to Pin kit> obj-intel64/YourTool.so

1

make PIN_ROOT=<path to Pin kit> OBJDIR=<path to output dir> <path to output dir>/YourTool.so

1
2
3
4
5
6
7

# Build the intermediate object file.
$(OBJDIR)YourTool$(OBJ_SUFFIX): YourTool.cpp
    $(CXX) $(TOOL_CXXFLAGS_NOOPT) $(COMP_OBJ)$@ $<

# Build the tool as a dll (shared object).
$(OBJDIR)YourTool$(PINTOOL_SUFFIX): $(OBJDIR)YourTool$(OBJ_SUFFIX)
    $(LINKER) $(TOOL_LDFLAGS_NOOPT) $(LINK_EXE)$@ $< $(TOOL_LPATHS) $(TOOL_LIBS)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# Build the intermediate object file.
$(OBJDIR)Source1$(OBJ_SUFFIX): Source1.cpp
    $(CXX) $(TOOL_CXXFLAGS) $(COMP_OBJ)$@ $<

# Build the intermediate object file.
$(OBJDIR)Source2$(OBJ_SUFFIX): Source2.c Source2.h
    $(CC) $(TOOL_CXXFLAGS) $(COMP_OBJ)$@ $<

# Build the tool as a dll (shared object).
$(OBJDIR)YourTool$(PINTOOL_SUFFIX): $(OBJDIR)Source1$(OBJ_SUFFIX) $(OBJDIR)Source2$(OBJ_SUFFIX) Source2.h
    $(LINKER) $(TOOL_LDFLAGS_NOOPT) $(LINK_EXE)$@ $(^:%.h=) $(TOOL_LPATHS) $(TOOL_LIBS)

1
2

YourTest.test: $(OBJDIR)YourTool$(PINTOOL_SUFFIX) $(OBJDIR)YourApp$(EXE_SUFFIX)
    $(PIN) -t $< -- $(OBJDIR)YourApp$(EXE_SUFFIX)
